Camshaft production at Daimler, Berlin

Camshaft production at Daimler, Berlin

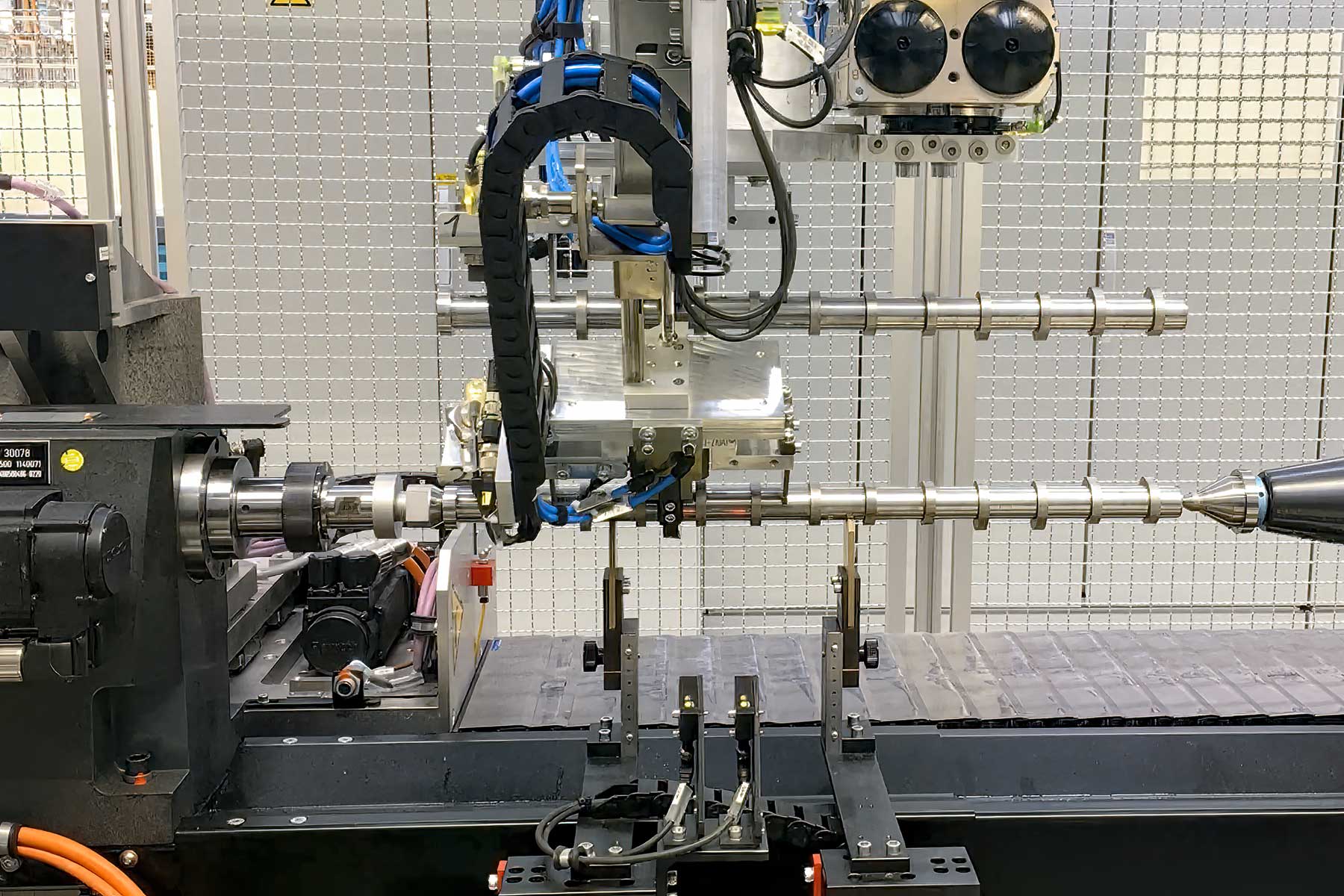

The camshaft production at Daimler in Berlin consists of 9 fully automated operating sequences, from turning operations of the raw part to high-pressure cleaning and final measurement. The individual operating sequences are decoupled with box stacking modules in order to produce flexibly.

Technical Details

Project

Camshaft production at Daimler AG in Berlin plant

Installation

  • Automation of 2 milling machines, DMC laser markers, and measuring of work pieces, automation of a broaching machine with an oil suction station, decoupling for the temporary storage of work pieces with different processing conditions
  • Automation of eight milling machines, 2 deburring machines, and a measuring machine with cameras for checking the DMC, and for alignment of work pieces
  • Intermediate cleaning and measuring of work pieces
  • Automation of 3 laser hardening machines with tempering furnace, decoupling module for temporary storage of empty baskets for the work pieces in the tempering furnace
  • Automation of 3 grinding machines
  • Automation of a high-pressure washer for the final cleaning of work pieces

Controls

  • 17x SINUMERIK 840D sl
  • 2x TRUMPF laser marking
  • 1x KUKA KR30

Features

  • DMC laser marking
  • DMC cameras
  • Data acquisition MDE / PDA
